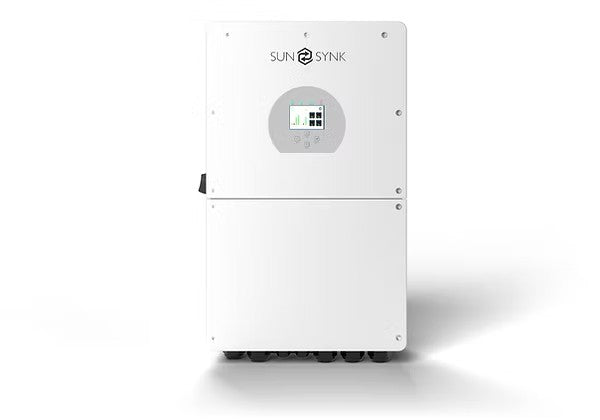

Sunsynk MAX 16kW, 48Vdc Single Phase Hybrid Inverter with WIFI included
Sunsynk MAX 16kW, 48Vdc Single Phase Hybrid Inverter with WIFI included
The 16kW single-phase hybrid inverter is the biggest addition to Sunsynk’s low voltage (48V) single-phase inverter range. It’s suitable for off-grid, grid support, backup, and self-consumption PV systems and can also be used in both three-phase and single-phase parallel applications.
Additional features:
- A total of 15x inverters can be connected in a three-phase configuration (five units per phase) - giving a maximum power output of 240kW
- Three inverters can be connected in a single-phase configuration giving a total power of 48kW
- Contains 3x MPPTs to allow for flexible PV array designs and improved efficiency
- Programmable multiple operation modes: on-grid/off-grid & UPS
- IP65 protection rating
- Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
- Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV, and Freedomwon
SA:
-
NRS 097 certified but has no CoCT approval.
For installations with Pylontech, REVOV and Hubble Lithium batteries use this BMS cable: SUN-CAN-3M
For installations with Freedom Won batteries use this BMS cable: F-WON-CAN-SUN
It is recommended that you use the size 3 fuse holder with the appropriately rated size 3 fuses when deploying this inverter system, the battery DC currents are high and the size 3 fuses best suits this application.
Installations with Sunsynk products need to be registered to gain full activation of the warranty. Register here>>
Important
It is recommended that the correct size output breaker as per SANS10142-1 is used with this inverter. Inverter max pass through current – 150A Recommended circuit breaker size - 100AThis product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. We will not be held liable for any product malfunctions as a result of incorrectly installed systems.
